FS-240 Cold Juicing Press

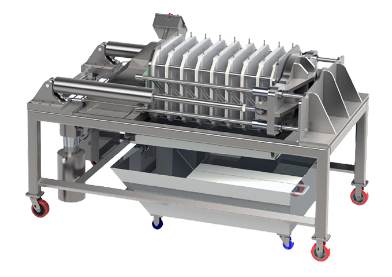

Freshly Squeezed FS-240 Cold Juice Press (Model 800)

Check out whole line FS Cold Press machines:
Commercial Series: FS 8.5FS-12FS-20 PlusFS-30 PlusFS-60
Industrial Series: FS-120FS-240FS-360FS-2000



The FS-240 hydraulic juice press caters specifically to the needs of high-volume cider and juice producers, boasting the capacity to churn out up to 480 gallons of juice every hour.

Its design emphasizes flexibility, a crucial element for producing a variety of juice blends at large scales. Unlike large, fixed-position, multi-layer presses that produce high volumes but lack adaptability for different products, a fleet of FS-240 Industrial Juice Presses enhances your operation’s versatility to meet shifting production demands cost-effectively.

Constructed entirely of stainless steel, the FS-240 press features eight press bags, each supported by our patented heavy-duty “wave” boards for optimal juice extraction.

The juice is collected into a 24-gallon pan, equipped with a stainless sanitary valve and discharge for effortless juice transfer to either a provided bucket or a sanitary pumping system for centralized collection.

The press’s dual heavy-duty, all-stainless hydraulic cylinders power the press bags and boards.

Its innovative cartridge-style design allows for the entire 8-layer press zone to rotate, facilitating easy pomace/cake removal without the mess or safety concerns, and eliminating the need to remove press bags between cycles.



Developed with input from industry experts, the FS-240 showcases several distinctive features for modern juicing operations:
– A wash-down design for comprehensive cleaning.
– An electropolished surface for hassle-free maintenance.
– Wavy pressing plates for even force distribution across the press bags, minimizing bag bursts and maximizing yield.
– Dual emergency stop buttons for added safety.
– Seam welding for a cleaner, more durable construction, avoiding the complications of bolt-together designs.

Safety is a top priority in the design of the FS-240 and across all FS cold press models, featuring safety guards, dual emergency stops, circuit protection for motors, and wet environment-compatible plugs and cords, highlighting our commitment to operator safety and operational efficiency over the competition.

The FS-240, along with all FS press models, is NSF compliant, INTERTEK approved, and proudly manufactured in the USA, representing the pinnacle of quality and safety in juice pressing technology.

FS-240 Specs

  • Output: 120-480 Gallons per Hour
  • Power: 20 Amp, 200-240 VAC, Single Phase; 3HP Motor
  • Net Weight: Approximately 3000 Lbs
  • Dimensions: 64 x 38 x 70 inches
  • Safety Features: Emergency Stop Buttons on Both Sides
  • Connectivity: L6-20P Plug and Cord
  • Design: Optimized for Wet Environments
