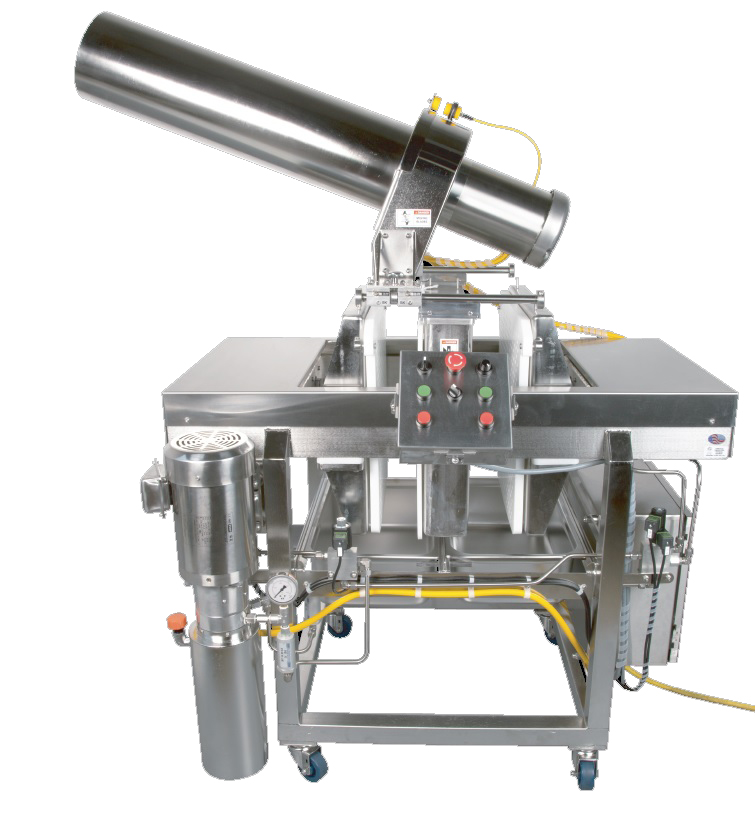

The FS-60 hydraulic juice press stands as the pinnacle of our commercial cold juicing press offerings, positioned just before our industrial FS series.

It’s perfectly suited for small teams of one to two people, delivering an impressive output of up to 100 gallons of juice per hour. This model sets itself apart with two pressing zones and a movable shredder, a combination that significantly boosts juice production, matching the output of competing presses that utilize six layers.

Designed to process a wide range of produce with up to an 86% yield from the product’s weight, the FS-60 is an ideal match for commercial kitchens, juice bottling plants, cider production facilities, and other high-volume operations.

Developed in collaboration with juicing industry experts, the FS-60 incorporates several distinctive features to meet the demands of today’s juicing market:
– A wash-down design for thorough cleaning.
– An electropolished surface for effortless maintenance.
– Wavy pressing plates for uniform pressure application, preventing bag bursts and maximizing yield.
– Dual emergency stop buttons for enhanced safety.
– Two sets of oversized 20 x 20 inch pressing plates.
– Seam welding for a cleaner, easier-to-maintain unit, avoiding the pitfalls of bolt-together designs.

The FS-60’s robustness is unmatched, applying a force of 14,000 lbs with each press, dwarfing the 4,000 lbs force seen in competing models and significantly increasing yield. The juice it produces is exceptionally pure, containing less than 1% solids, thus eliminating the need for additional filtering.



Like its predecessors, the FS-20 PLUS and FS-30 PLUS, the FS-60’s shredder is bolstered by an extra bearing and an 11 lb disc plate for shredder stability and minimized motor load.

The versatile shredder, positioned between the two pressing platens, can be used interchangeably, contributing to the press’s efficiency. Operation is streamlined through a unified control panel, simplifying the juicing process.

Safety has been a paramount consideration in the design of the FS-60, featuring a grinder safety interlock to ensure operation only when the feeding tube is properly installed.

Along with safety guards, dual emergency stops, circuit protection for all motors, a wet environment plug and cord, and a main electrical disconnect, these features highlight our commitment to operator safety and operational excellence.

The FS-60, like all FS cold press models, is NSF compliant, INTERTEK approved, and proudly made in the USA, available in both 110V and 220V configurations. This makes it a versatile and reliable choice for any high-demand juicing operation.

FS-60 PRESS

• Output: Up to 100 Gallons per Hour
• Force: 14,000 lbs x 2
• Oil Reservoir: 3 Gallons
• Power: 20 Amp, 220 Volt, Single Phase; 3HP Motor
• Net Weight: 785 Lbs
• Dimensions: 50 x 37 x 72 inches
• Safety Features: Emergency stop buttons on both sides
• Connectivity: L6-20P Plug and Cord
• Convenience: 1 Cord for Both Press and Grinder
• Design: Optimized for Wet Environments, Smallest Footprint for up to 100 Gal/hr Production

BUILT-IN GRINDER

• Blades: 9″ German-Made Grinding Blade, Comes with 3 Blades
• Speed: 0 – 3600 RPM, Simple Speed Control
• Safety: Safety Interlock on Grinder Tube
• Construction: 100% Sanitary Wash-Down Construction
• Additional Features: Extra Bearing
• Control: Common Control Panel for Shredder and Press
