ITV Ice Queen Modular Ice Makers



Ice Queen Ice Flakes

ITV IQ Modular 300-1300

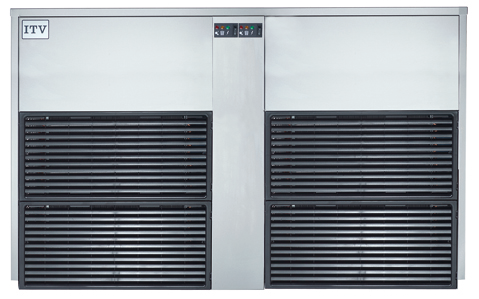

ITV IQ Modular 2700

User Manual (pdf)
ITV Ice Makers

ITV Ice Queen Modular Granular Ice Maker Series



DIMENSIONS:

IQ Modular Width (in.) Depth (in.) Height (in.)
IQ 300 20 1/4″ 21 6/8″ 19 1/8″
IQ 500  20 1/4″” 21 6/8″ 22 3/4″
IQ 900 26 5/8″ 21 6/8″ 26 3/8″
IQ 1300 26 5/8″ 21 6/8″ 31 1/2″
IQ 2700 52 5/8″ 24″ 32 1/8″

Dimentions do not include adjustable legs 6″-6.5″



GENERAL SPECIFICATIONS:

IQ Models Production
70F Air/50F Wtr
lb/24h
Production
90F Air/70F Wtr
lb/24 h
Suggested/
Bin
Water Usage
gal/hr
90F/70F
Voltage Amps R404A
oz.
Net Weight
lb
IQ 300 A 360 260 S-430 IQ 1.8 115V/60Hz/1 7 12.36 108
IQ 300 W 365 265 S-430 IQ 1.8 115V/60Hz/1 6.5 13.41 108
IQ 500 A 675 485 S-430 IQ 3.4 115V/60Hz/1 9 15.89 115
IQ 500 W 685 495 S-430 IQ 3.4 115V/60Hz/1 8.5 15.53 115
IQ 900 A 980 710 S-1030 IQ 4.9 230/60Hz/1 9.5 56.48 181
IQ 900 W 1005 730 S-1030 IQ 4.9 230V/60Hz/1 9 52.95 181
IQ 900 A III 980 710 S-1030 IQ 4.9 230V/60Hz/3 6 56.48 181
IQ 900 W III 1005 730 S-1030 IQ 4.9 230V/60Hz/3 5.5 52.95 181
IQ 1300 A 1430 1030 S-1030 IQ 7.1 230V/60Hz/1 12.5 52.95 231
IQ 1300 W 1450 1050 S-1030 IQ 7.1 230V/60Hz/1 11.5 56.48 231
IQ 1300 A III 1430 1030 S-1030 IQ 7.1 230V/60Hz/3 7.5 52.95 231
IQ 1300 W III 1450 1050 S-1030 IQ 7.1 230V/60Hz/3 7 56.48 231
IQ 2700 A 2860 2060 S-1030 IQ 14.3 230V/60Hz/3 15 2*56.5 463
IQ 2700 W 2900 2100 S-1030 IQ 14.3 230V/60Hz/3 14 2*53 463

A: Air-Cooled / W: Water-Cooled / Filtration kit for all models: CS-112K
